DanielB - 2007 ADM Subaru Legacy 3R 6MT - Tuning

Post by west_minist »

Info
http://forum.liberty.asn.au/viewtopic.php?f=10&t=21059
Owner: DanielB
Rom: D2UH001M
Tyres: 225/45R18
Car Weight: 1655kg
Driver Weight: 85kg
Total Weight:1740 kg

Mods
HKS Panel Filter
Phat Quad Tip Mufflers

All dyno'es are based on RPM

west_minist
Site Admin
Posts: 1828
Joined: Sun May 20, 2007 11:08 pm
Location: Barbados
Contact:

Stock Data

Post by west_minist »

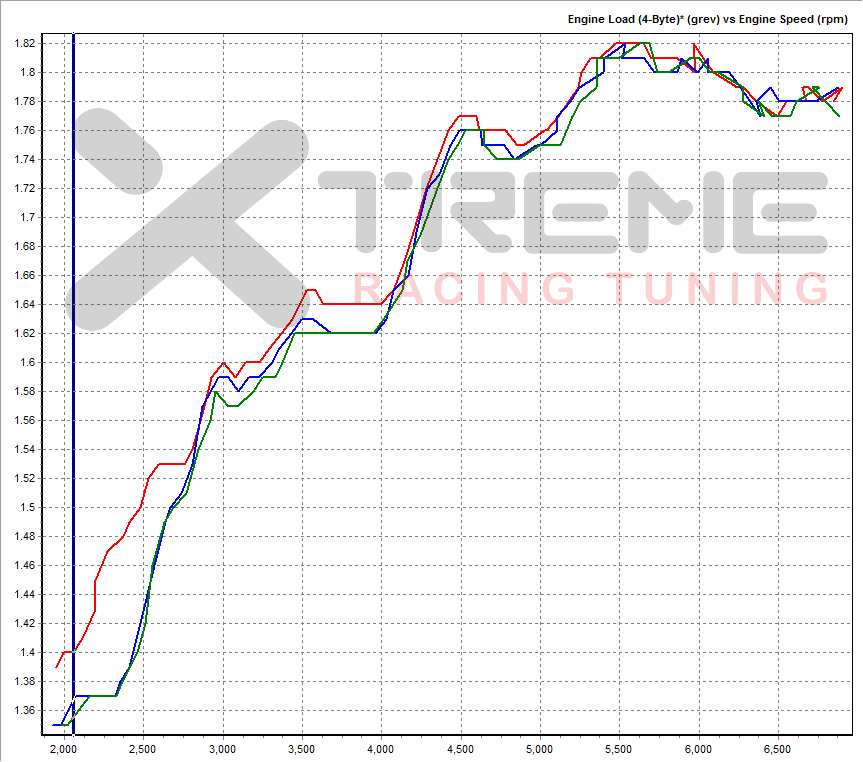

Stock 3rd Gear Dynoes SAE Eng Load.png
Stock 3rd Gear Dynoes SAE Eng Load.png (35.34 KiB) Viewed 9300 times
Stock 3rd Gear Dynoes SAE FLKC.png
Stock 3rd Gear Dynoes SAE FLKC.png (39.11 KiB) Viewed 9300 times

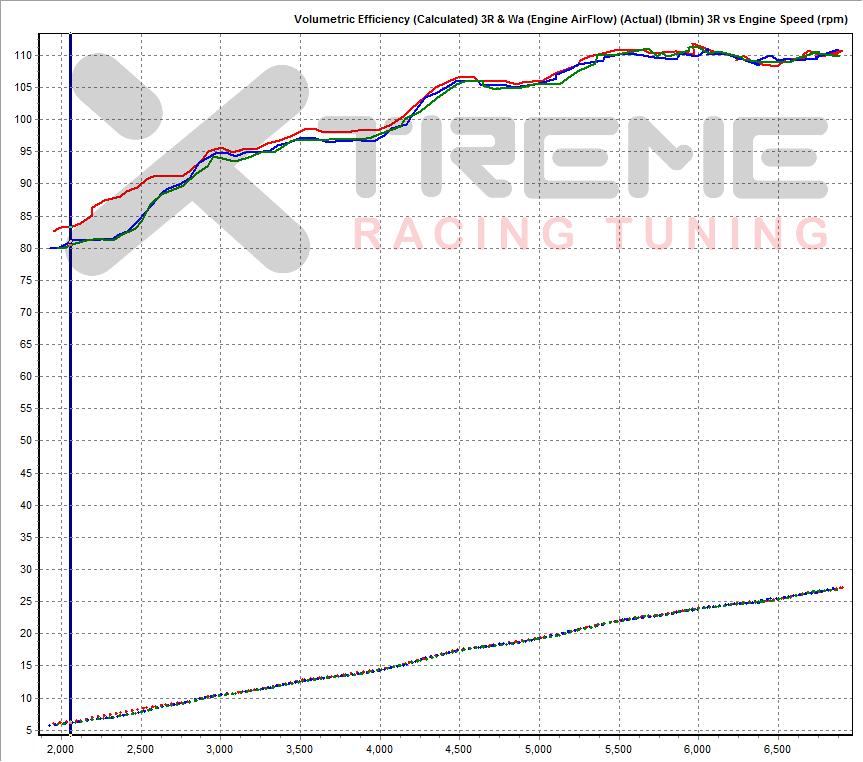

Stock 3rd Gear Dynoes SAE VE_WA.png
Stock 3rd Gear Dynoes SAE VE_WA.png (34.27 KiB) Viewed 9300 times

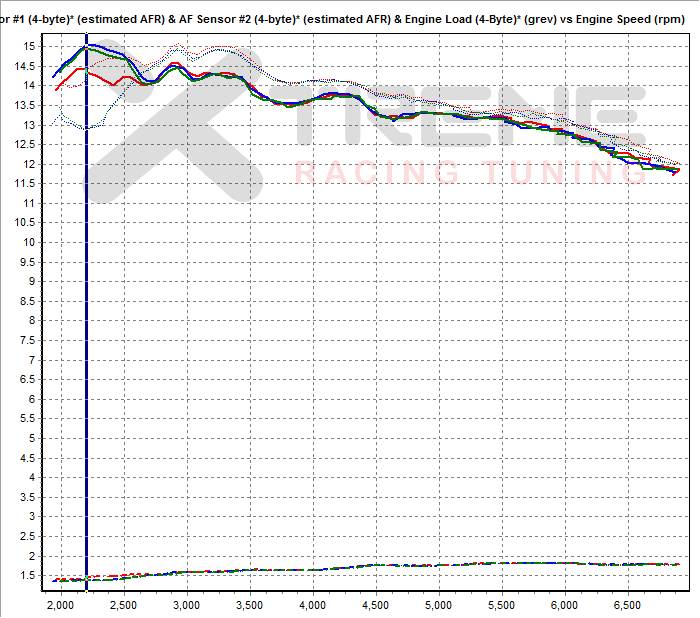

Stock 3rd Gear Dynoes SAE AFR.png
Stock 3rd Gear Dynoes SAE AFR.png (25.74 KiB) Viewed 9296 times

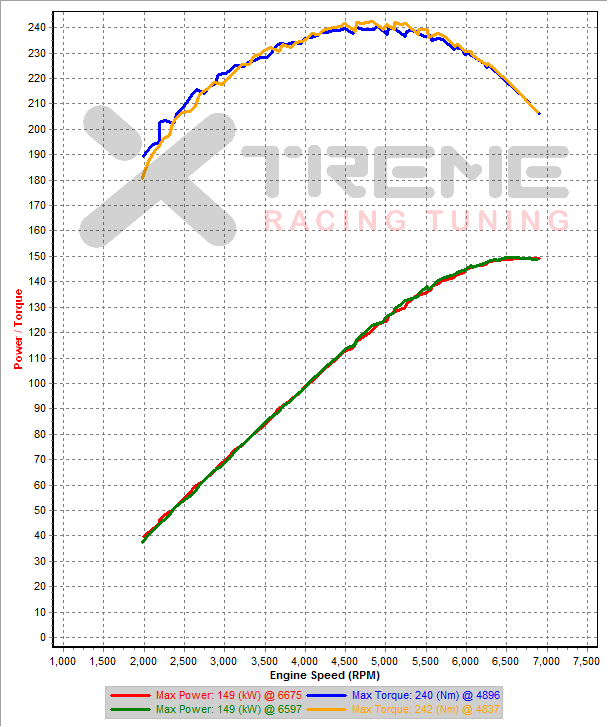

Stock 3rd Gear Dynoes SAE.png
Stock 3rd Gear Dynoes SAE.png (26.1 KiB) Viewed 9293 times

west_minist
Site Admin
Posts: 1828
Joined: Sun May 20, 2007 11:08 pm
Location: Barbados
Contact:

v0 Stats

Post by west_minist »

XRT v0 vs Stock - 3rd Gear Dyno SAE
XRT v0 vs Stock - 3rd Gear Dyno SAE
XRT v0 vs Stock - 3rd Gear Dyno SAE.png (31.34 KiB) Viewed 9292 times

west_minist
Site Admin
Posts: 1828
Joined: Sun May 20, 2007 11:08 pm
Location: Barbados
Contact:

V1a Stats

Post by west_minist »

v1a 3rd Gear Dynoes SAE.png
v1a 3rd Gear Dynoes SAE.png (32.59 KiB) Viewed 9287 times

west_minist
Site Admin
Posts: 1828
Joined: Sun May 20, 2007 11:08 pm
Location: Barbados
Contact:

Re: DanielB - 2007 ADM Subaru Legacy 3R 6MT - Tuning

Post by west_minist »

v2-avcs 2nd Gear Dyno SAE.png
v2-avcs 2nd Gear Dyno SAE.png (29.17 KiB) Viewed 9251 times
From: DanielB
Sent: Monday, June 03, 2013 7:06 AM
To: Edward
Subject: RE: v2-avcs

the car so has been awesome, today when I was driving spirited for the log it was a huge difference over stock, even compared to the previous rom, every rom has been an improvement that is easy to feel, even my misses said the car is much smoother and a lot more power, it will still take some time to get used to the response on the throttle as thee was so much lag before so I find myself quite often overrevving whilst taking off

your service has been great, sometime I think that I should be doing more or getting logs quicker, but you haven't seemed too fussed on it so the experience has been pleasant

thanks for your time and dedication Edward

Brunsy3.0
Novice
Posts: 2
Joined: Mon Jun 03, 2013 7:35 am
Location: Australia

Re: DanielB - 2007 ADM Subaru Legacy 3R 6MT - Tuning

Post by Brunsy3.0 »

I first made contact with Edward from XRT (west_minist) WAY back in December 2011. Edward was very prompt to replying to each question (no matter now noobish or silly it may have been). Originally I was waiting to upgrade my exhaust system for my 3.0L spec.B H6 6MT before I got it tuned. As everyone knows plans change and life gets in the way sometimes. So a long time later we finally get started on tuning, no exhaust mods besides Phat quad tip mufflers. V0 was sent on 22-05-13 and even this base rom was impressive, the new response of the throttle makes the stock tune look pathetic, and trust me this has only gotten better over the new roms. After V1, V1-avcs was sent making tweaks to the AVCS, obviously. The new roms makes it like a new car to drive, I find myself over-revving 1st gear on take off sometimes as the stock tune had so much lag in the throttle that it had to be held down for a bit and also further down to get the revs right. Now the revs come on instantly and are far more sensitive which makes learning to drive it new and exciting. after a few days the driving experience becomes much more comfortable and the confidence grows. Even the misses finds the new tune more responsive and powerful, She doesn't know how to make sense of the Dyno Graphs but still she can basically tell me (in her own words) that it has more torque, power, driveability, and that the overall car feels much smoother. I am currently on V3 and if the results from my next log are what Edward expects than it will be the last....for a few weeks anyway.

I have ceramic coated headers going on in the near future and absolutely cannot wait until they're installed and we can get the retune underway. Edward has not only been informative but VERY patient. I went from not knowing a damn thing about tuning, logging, reading Dyno figures, hell I didn't have a clue what a Tactrix Openport 2.0 cable was. I was a little hesitant at first, especially when messing with the brain of the car that I had not had ANY experience with whatsoever. But after showing me the ropes I was much more comfortable with loading roms, recording logs, and doing all the other bits and pieces (which isn't all that scary once I had done it a few times). I have to thank Edward for all his time and effort, and especially for making the car the way it should have come from factory, a BEAST. Edward seemed almost as excited as I was to get the tuning started and for each and every rom, making changes and tweaking this and that (most of which I cannot get my head around). So for anybody looking to get tuned by XRT, stop hesitating and just do it, seriously best bang for buck I have done to the car yet.

Thanks again Edward for all you have done, cheers.

Brunsy (DanielB)

west_minist
Site Admin
Posts: 1828
Joined: Sun May 20, 2007 11:08 pm
Location: Barbados
Contact:

v4 Stats

Post by west_minist »

v4 vs Stock - 3rd Gear Dyno SAE.png
v4 vs Stock - 3rd Gear Dyno SAE.png (39.77 KiB) Viewed 9173 times

west_minist
Site Admin
Posts: 1828
Joined: Sun May 20, 2007 11:08 pm
Location: Barbados
Contact:

XRT v4 - Raptor Headers vs Stock Headers - 3rd Gear Dyno SAE

Post by west_minist »

XRT v4 - Raptor Headers vs Stock Headers - VE.png
XRT v4 - Raptor Headers vs Stock Headers - VE.png (26.46 KiB) Viewed 9115 times
XRT v4 - Raptor Headers vs Stock Headers - 3rd Gear Dyno SAE
XRT v4 - Raptor Headers vs Stock Headers - 3rd Gear Dyno SAE
XRT v4 - Raptor Headers vs Stock Headers - 3rd Gear Dyno SAE.png (48.84 KiB) Viewed 9116 times

west_minist
Site Admin
Posts: 1828
Joined: Sun May 20, 2007 11:08 pm
Location: Barbados
Contact:

v6 Raptor Headers Tuned

Post by west_minist »

XRT Tuned 2007 ADM Liberty 3.0R 6MT.png
XRT Tuned 2007 ADM Liberty 3.0R 6MT.png (51.58 KiB) Viewed 9039 times

west_minist
Site Admin
Posts: 1828
Joined: Sun May 20, 2007 11:08 pm
Location: Barbados
Contact:

Re: DanielB - 2007 ADM Subaru Legacy 3R 6MT - Tuning

Post by west_minist »

The car has been reviewed and still producing the came power here.
